NC3FDM3-H

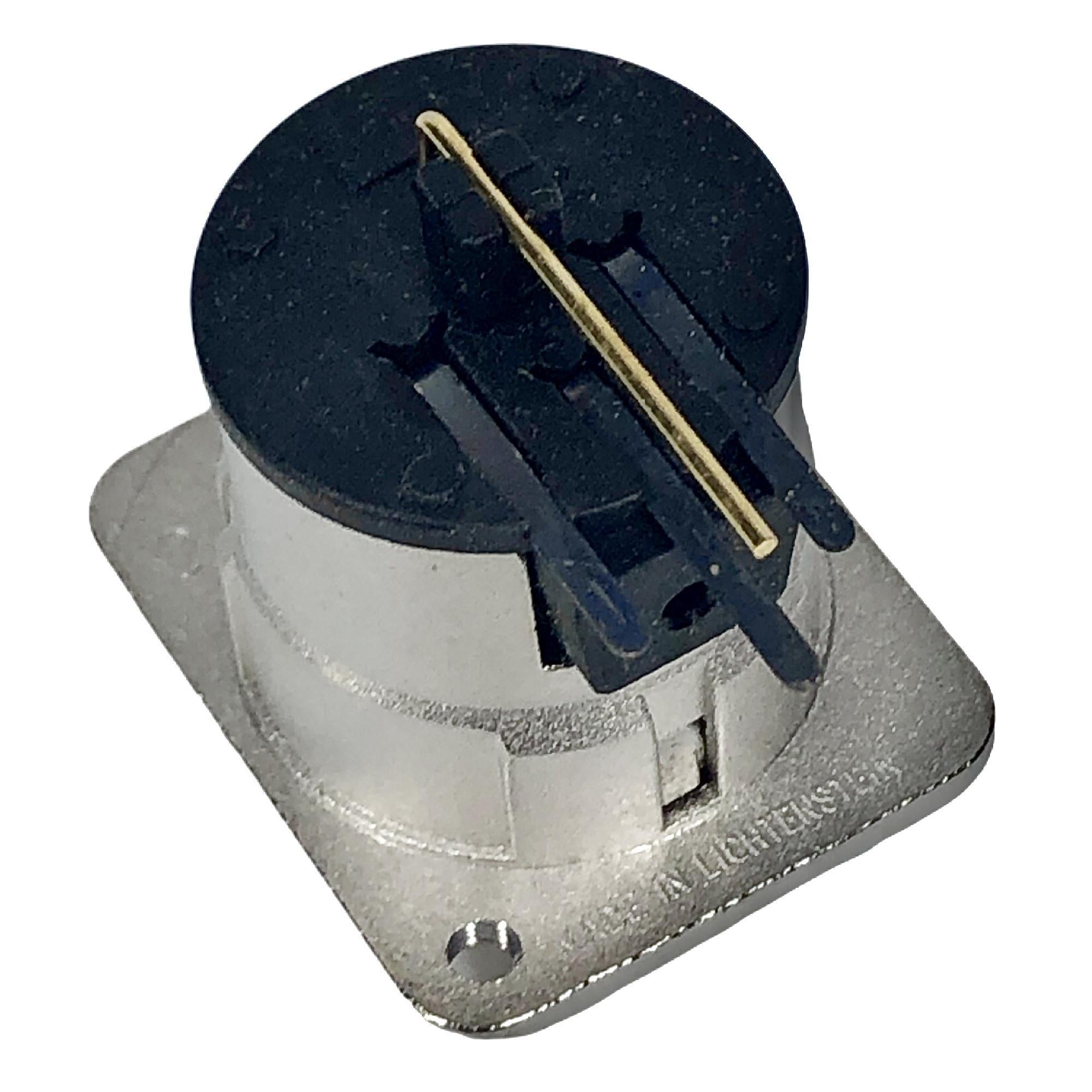

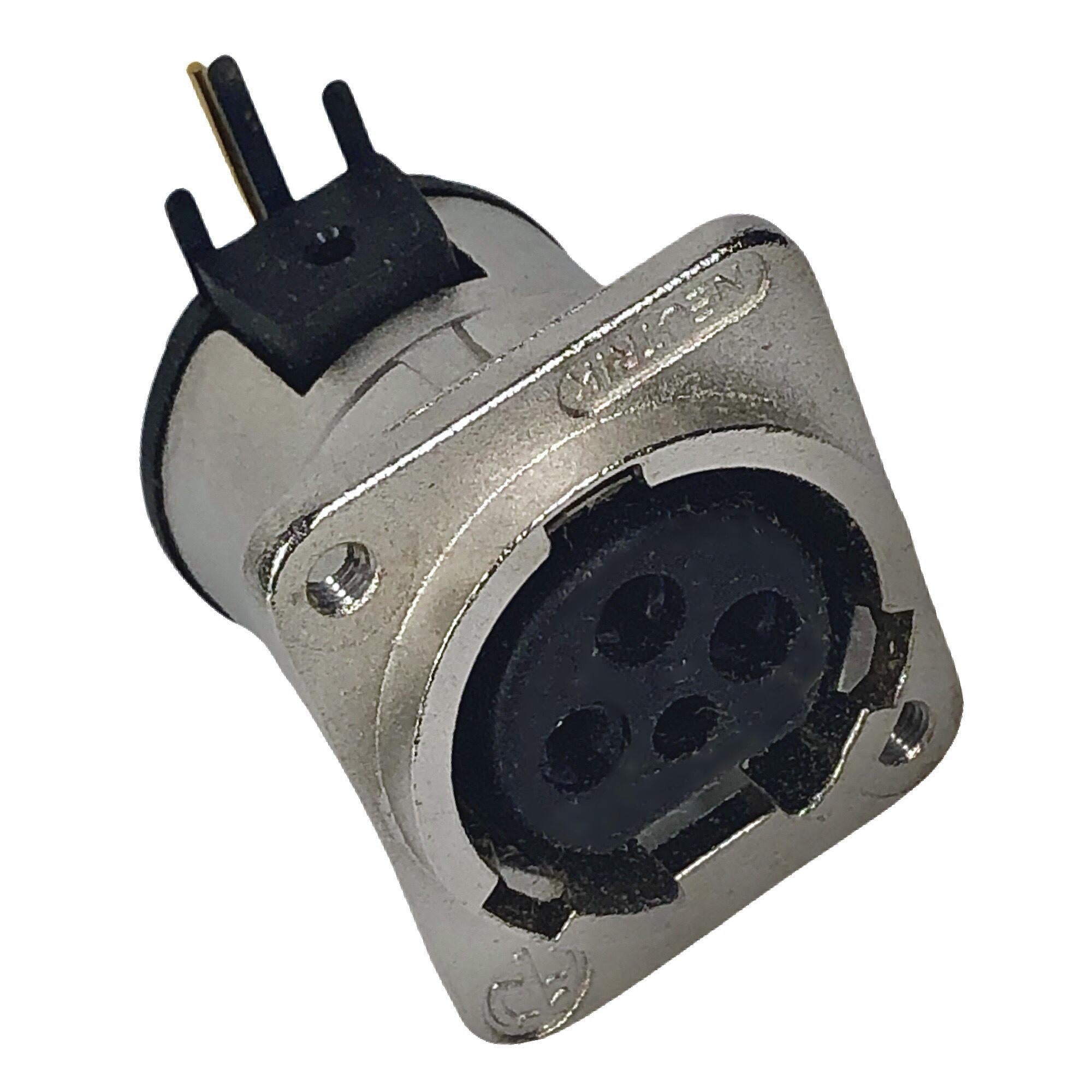

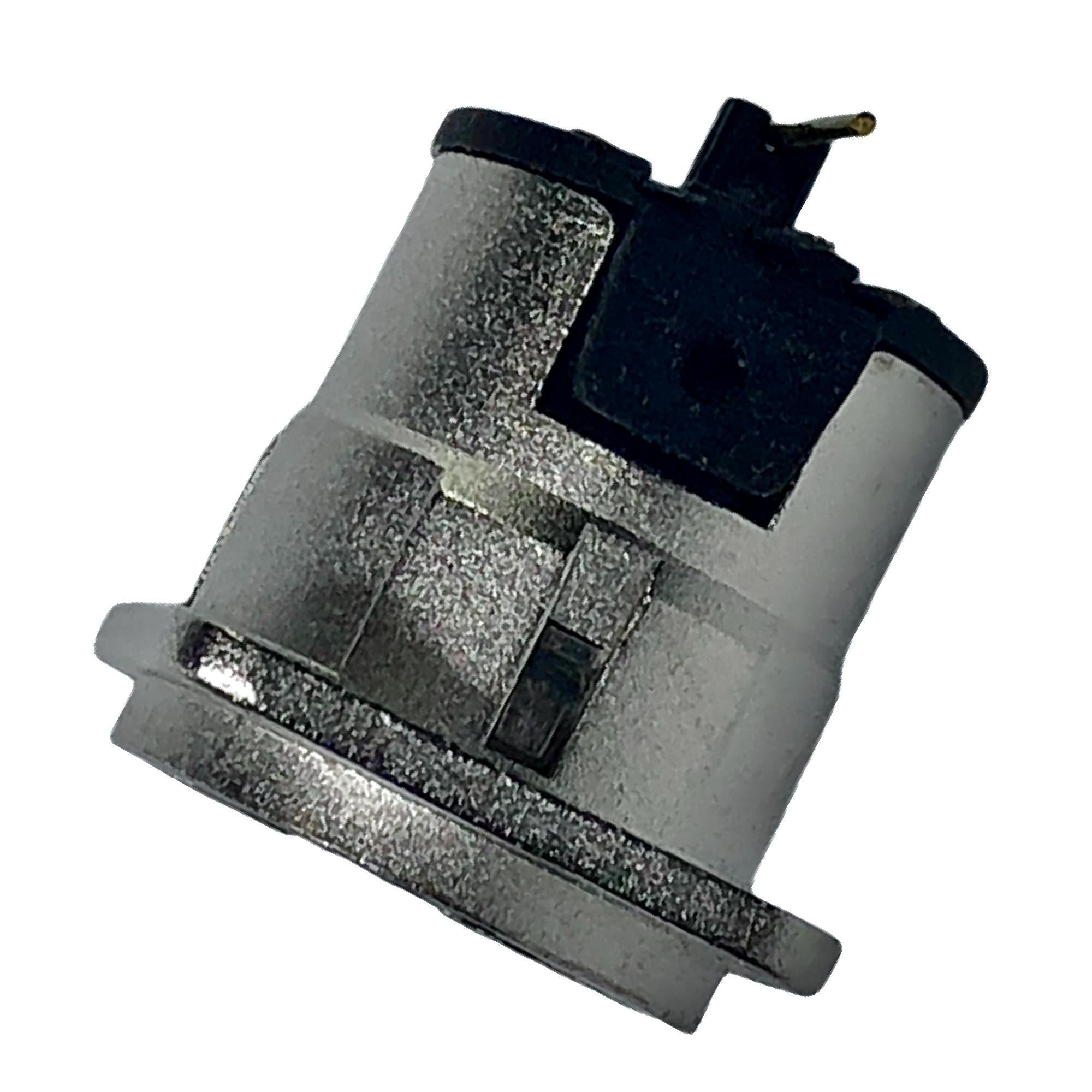

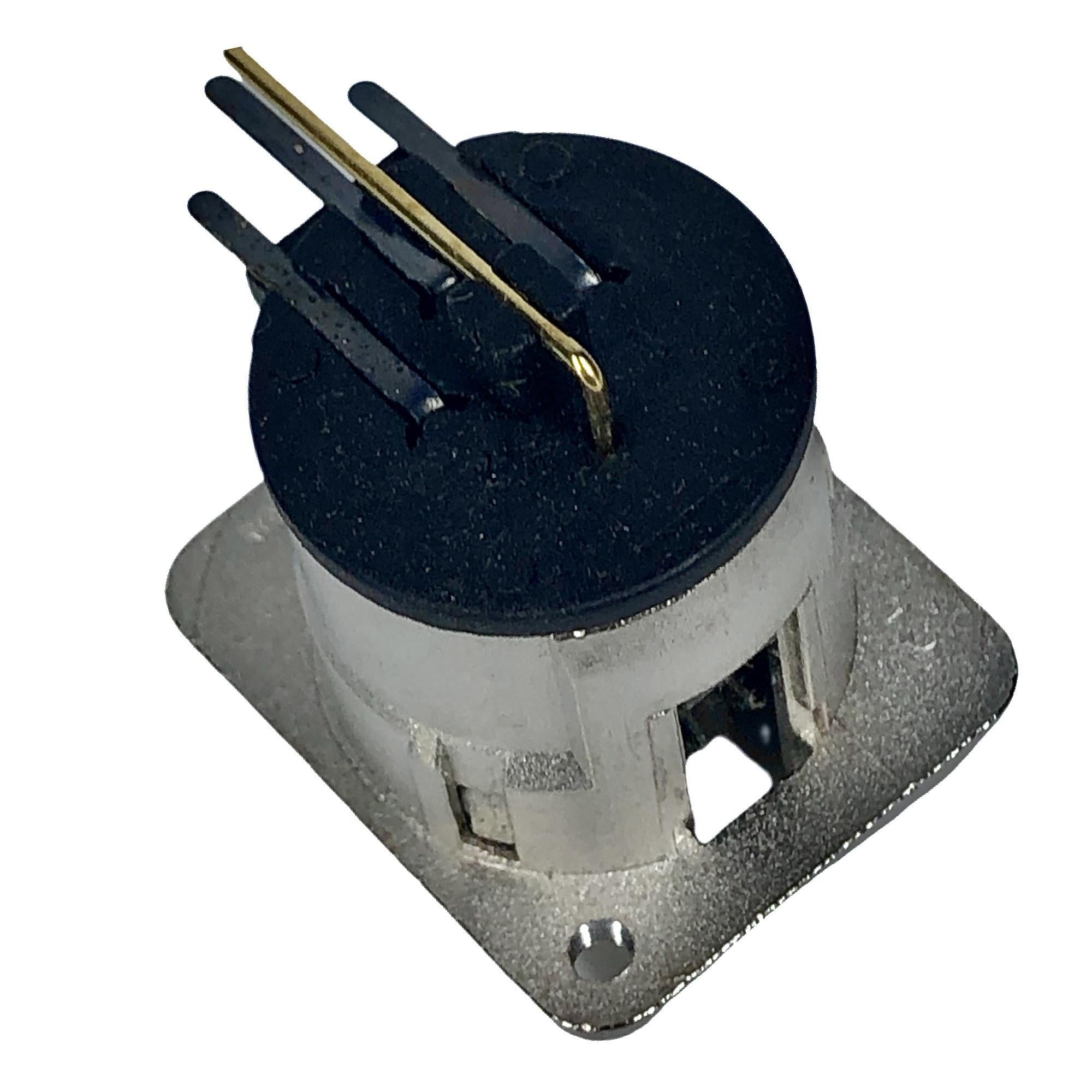

3 pole female receptacle, horizontal PCB mount, Nickel housing, silver contacts, M3 mounting holes

Universal D-size metal body XLR panel mount series for pcb mount applications. Insert is removable from shell for ease assembling. UL recognized component.

Features & Benefits

  • D-shape metal shell
  • Optimal RF protection using 3 shield contacts.
  • Insert is removable from rear of connector and locked into place by internal latch – permitting assembling and testing of pcb before assembling into housing
  • Front or rear panel mount

    • Title

      		 NC3FDM3-H
      Connection Type

      		 XLR
      Gender

      		 female
      Electrical


      Capacitance between contacts

      		 ≤ 4 pF
      Contact resistance

      		 ≤ 5 mΩ
      Dielectric strength

      		 1,5 kVdc
      Insulation resistance

      		 > 10 GΩ (initial)
      Rated current per contact

      		 6 A
      Rated voltage

      		 < 50 V
      Mechanical


      Insertion force

      		 ≤ 20 N
      Withdrawal force

      		 ≤ 20 N
      Lifetime

      		 > 1000 mating cycles
      Wiresize


      Wiring

      		 Horizontal PCB mount
      Locking device

      		 Latch lock
      Mounting direction

      		 Rear mounting
      Chassis shape

      		 D
      Mounting

      		 Mounting holes with M3 threads
      Material


      Contact plating

      		 2 µm Ag over 2 µm Ni
      Contacts

      		 Bronze (CuSn6)
      Insert

      		 PA66
      Locking element

      		 Steel Ck67
      Shell

      		 Zinc diecast (ZnAl4Cu1)
      Shell plating

      		 Nickel
      Environmental


      Approvals

      		 UL
      Flammability

      		 UL 94 V-0
      Standard compliance

      		 IEC 61076-2-103
      Protection class

      		 IP 40
      Solderability

      		 Complies with IEC 68-2-20
      Temperature range

      		 -30 °C to +80 °C
